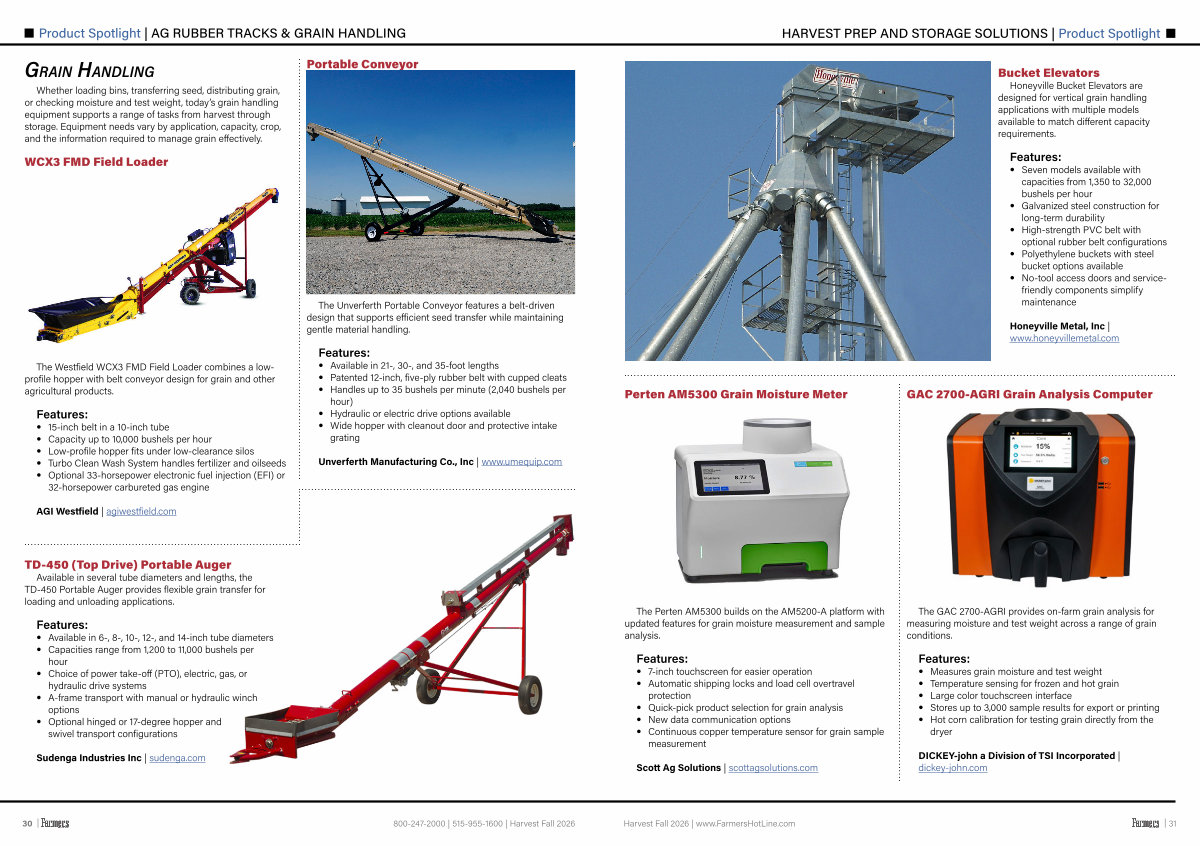

Product Spotlight | AG RUBBER TRACKS & GRAIN HANDLING
Grain Handling
Whether loading bins, transferring seed, distributing grain, or checking moisture and test weight, today’ s grain handling equipment supports a range of tasks from harvest through storage. Equipment needs vary by application, capacity, crop, and the information required to manage grain effectively.
Portable Conveyor
WCX3 FMD Field Loader
The Unverferth Portable Conveyor features a belt-driven design that supports efficient seed transfer while maintaining gentle material handling.
The Westfield WCX3 FMD Field Loader combines a lowprofile hopper with belt conveyor design for grain and other agricultural products.
Features:
• 15-inch belt in a 10-inch tube
• Capacity up to 10,000 bushels per hour
• Low-profile hopper fits under low-clearance silos
• Turbo Clean Wash System handles fertilizer and oilseeds
• Optional 33-horsepower electronic fuel injection( EFI) or 32-horsepower carbureted gas engine
Features:
• Available in 21-, 30-, and 35-foot lengths
• Patented 12-inch, five-ply rubber belt with cupped cleats
• Handles up to 35 bushels per minute( 2,040 bushels per hour)
• Hydraulic or electric drive options available
• Wide hopper with cleanout door and protective intake grating
Unverferth Manufacturing Co., Inc | www. umequip. com
AGI Westfield | agiwestfield. com
TD-450( Top Drive) Portable Auger
Available in several tube diameters and lengths, the TD-450 Portable Auger provides flexible grain transfer for loading and unloading applications.
Features:
• Available in 6-, 8-, 10-, 12-, and 14-inch tube diameters
• Capacities range from 1,200 to 11,000 bushels per hour
• Choice of power take-off( PTO), electric, gas, or hydraulic drive systems
• A-frame transport with manual or hydraulic winch options
• Optional hinged or 17-degree hopper and swivel transport configurations
Sudenga Industries Inc | sudenga. com
30 | 800-247-2000 | 515-955-1600 | Harvest Fall 2026
