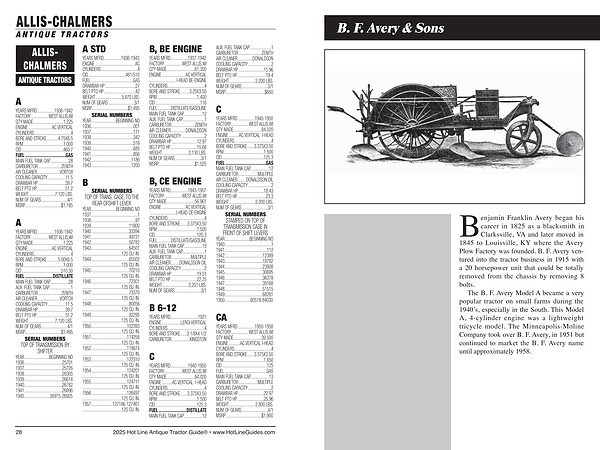

Hot Line Antique Tractor Guide 2025 - Sample Book | Page 14

ANTIQUE TRACTORS

ALLIS- CHALMERS

ANTIQUE TRACTORS

A

YEARS MFRD................. 1936-1942 FACTORY................. WEST ALLIS, WI QTY MADE............................ 1,225 ENGINE...................... AC VERTICAL CYLINDERS................................... 4 BORE AND STROKE........... 4.75X6.5 RPM...................................... 1,000 CID....................................... 460.7 FUEL...................................... GAS MAIN FUEL TANK CAP................. 28 CARBURETOR...................... ZENITH AIR CLEANER...................... VORTOX COOLING CAPACITY................. 11.5 DRAWBAR HP.......................... 39.7 BELT PTO HP........................... 51.2 WEIGHT......................... 7,120 LBS. NUM OF GEARS......................... 4 / 1 MSRP..................................$ 1,195

A

YEARS MFRD................. 1936-1942 FACTORY................. WEST ALLIS, WI QTY MADE............................ 1,225 ENGINE...................... AC VERTICAL CYLINDERS................................... 4 BORE AND STROKE........... 5.00X6.5 RPM...................................... 1,000 CID..................................... 510.50 FUEL.......................... DISTILLATE MAIN FUEL TANK CAP................. 28 AUX. FUEL TANK CAP.................... 1 CARBURETOR...................... ZENITH AIR CLEANER...................... VORTOX COOLING CAPACITY................. 11.5 DRAWBAR HP.......................... 39.7 BELT PTO HP........................... 51.2 WEIGHT......................... 7,120 LBS. NUM OF GEARS......................... 4 / 1 MSRP..................................$ 1,495

SERIAL NUMBERS TOP OF TRANSMISSION BY SHIFTER YEAR........................ BEGINNING NO 1936................................... 25701 1937................................... 25726 1938................................... 26305 1939................................... 26614 1940................................... 26782 1941................................... 26896 1942........................ 26915-26925

A STD

YEARS MFRD................. 1936-1943 ENGINE...................................... AC CYLINDERS................................... 4 CID................................... 461 / 510 FUEL........................................ GAS DRAWBAR HP............................. 27 BELT PTO HP.............................. 42 WEIGHT......................... 5,670 LBS. NUM OF GEARS......................... 3 / 1 MSRP..................................$ 1,495

SERIAL NUMBERS YEAR........................ BEGINNING NO 1936....................................... 001 1937....................................... 171 1938....................................... 342 1939....................................... 516 1940....................................... 685 1941....................................... 856 1942..................................... 1186 1943..................................... 1200

B

SERIAL NUMBERS TOP OF TRANS. CASE, TO THE REAR OFSHIFT LEVER YEAR........................ BEGINNING NO 1937........................................... 1 1938......................................... 97 1939................................... 11800 1940................................... 33394 1941................................... 49721 1942................................... 56782 1943................................... 64501.................................... 125 CU. IN. 1944................................... 65502.................................... 125 CU. IN. 1945................................... 70210.................................... 125 CU. IN. 1946................................... 72301.................................... 125 CU. IN. 1947................................... 73370.................................... 125 CU. IN. 1948................................... 80056.................................... 125 CU. IN. 1949................................... 92295.................................... 125 CU. IN. 1950................................. 102393.................................... 125 CU. IN. 1951................................. 114258.................................... 125 CU. IN. 1952................................. 118674.................................... 125 CU. IN. 1953................................. 122310.................................... 125 CU. IN. 1954................................. 124201.................................... 125 CU. IN. 1955................................. 124711.................................... 125 CU. IN. 1956................................. 126497.................................... 125 CU. IN. 1957.................... 127186-127461.................................... 125 CU. IN.

B, BE ENGINE

YEARS MFRD................. 1937-1942 FACTORY................. WEST ALLIS, WI QTY MADE.......................... 61,300 ENGINE...................... AC VERTICAL........................ I-HEAD BE-ENGINE CYLINDERS................................... 4 BORE AND STROKE......... 3.25X3.50 RPM...................................... 1,400 CID.......................................... 116 FUEL............. DISTILLATE / GASOLINE MAIN FUEL TANK CAP................. 12 AUX. FUEL TANK CAP.................... 1 CARBURETOR...................... ZENITH AIR CLEANER............... DONALDSON COOLING CAPACITY...................... 2 DRAWBAR HP........................ 12.97 BELT PTO HP......................... 15.68 WEIGHT......................... 2,130 LBS. NUM OF GEARS......................... 3 / 1 MSRP..................................$ 1,525

B, CE ENGINE

YEARS MFRD................. 1943-1957 FACTORY................. WEST ALLIS, WI QTY MADE.......................... 56,961 ENGINE...................... AC VERTICAL........................ I-HEAD CE-ENGINE CYLINDERS................................... 4 BORE AND STROKE....... 3.375X3.50 RPM...................................... 1,500 CID....................................... 125.3 FUEL............. DISTILLATE / GASOLINE MAIN FUEL TANK CAP................. 13 AUX. FUEL TANK CAP.................... 1 CARBURETOR.................. MULTIPLE AIR CLEANER......... DONALDSON OIL COOLING CAPACITY...................... 2 DRAWBAR HP........................ 19.51 BELT PTO HP......................... 22.25 WEIGHT......................... 2,251 LBS. NUM OF GEARS......................... 3 / 1

B 6-12

YEARS MFRD.......................... 1921 ENGINE.................. LEROI VERTICAL CYLINDERS................................... 4 BORE AND STROKE....... 3 1 / 8X4 1 / 2 CARBURETOR................. KINGSTON

C

YEARS MFRD................. 1940-1950 FACTORY................. WEST ALLIS, WI QTY MADE.......................... 84,020 ENGINE.......... AC VERTICAL I-HEAD CYLINDERS................................... 4 BORE AND STROKE....... 3.375X3.50 RPM...................................... 1,500 CID....................................... 125.3 FUEL.......................... DISTILLATE MAIN FUEL TANK CAP................. 12

AUX. FUEL TANK CAP.................... 1 CARBURETOR...................... ZENITH AIR CLEANER............... DONALDSON COOLING CAPACITY...................... 2 DRAWBAR HP........................ 15.96 BELT PTO HP........................... 19.4 WEIGHT......................... 2,200 LBS. NUM OF GEARS......................... 3 / 1 MSRP.....................................$ 650

C

YEARS MFRD................. 1940-1950 FACTORY................. WEST ALLIS, WI QTY MADE.......................... 84,020 ENGINE.......... AC VERTICAL I-HEAD CYLINDERS................................... 4 BORE AND STROKE....... 3.375X3.50 RPM...................................... 1,500 CID....................................... 125.3 FUEL...................................... GAS MAIN FUEL TANK CAP................. 12 CARBURETOR.................. MULTIPLE AIR CLEANER......... DONALDSON OIL COOLING CAPACITY...................... 2 DRAWBAR HP........................ 18.43 BELT PTO HP........................... 23.3 WEIGHT......................... 2,200 LBS. NUM OF GEARS......................... 3 / 1

SERIAL NUMBERS STAMPED ON TOP OF TRANSMISSION CASE IN FRONT OF SHIFT LEVERS YEAR........................ BEGINNING NO 1940........................................... 1 1941....................................... 112 1942................................... 12389 1943................................... 18782 1944................................... 23908 1945................................... 30695 1946................................... 36378 1947................................... 39168 1948................................... 51515 1949................................... 68281 1950........................ 80518-84030

CA

YEARS MFRD................. 1950-1958 FACTORY................. WEST ALLIS, WI QTY MADE.......................... 39,500 ENGINE........... AC VERTICAL I-HEAD CYLINDERS................................... 4 BORE AND STROKE....... 3.375X3.50 RPM...................................... 1,650 CID.......................................... 125 FUEL........................................ GAS MAIN FUEL TANK CAP................. 13 CARBURETOR.................. MULTIPLE COOLING CAPACITY...................... 2 DRAWBAR HP........................ 22.97 BELT PTO HP......................... 25.96 WEIGHT......................... 2,800 LBS. NUM OF GEARS......................... 4 / 1 MSRP..................................$ 1,900
